Two-Hand Control Console
HRF-C
A complete two-hand-plus-foot-pedal safety console for presses and shears — four buttons, an emergency stop and a foot pedal on a height- and tilt-adjustable stand.
General Features
| Material | High-strength structural steel (orange + black) |
| Controls | 4 buttons + 1 emergency stop + 1 foot pedal |
| Rated | Per fitted button / switch |
| Buttons | T19 / B30 / J2 buttons + foot switch |
| Adjustment | 6-step height · 4-step tilt |
| Compliance | ISO 13851 / EN 574 |
| Protection Rating | IP65 |
Structural Features
| ❶Console Stand | High-strength structural-steel stand (orange + black); 6-step height and 4-step tilt adjustment. |
| ❷Two-Hand Controls | Four buttons plus an emergency-stop button requiring two-hand operation. |
| ❸Foot Pedal | Integrated foot switch for combined hand-and-foot safety control. |
| ❹Switches | T19 / B30 / J2 buttons fitted as specified. |
Installation Mode
Free-standing console for press and shear machines; height and tilt adjustable. Available with base (CB) or without switches (O) for custom fit. Complies with ISO 13851 / EN 574.

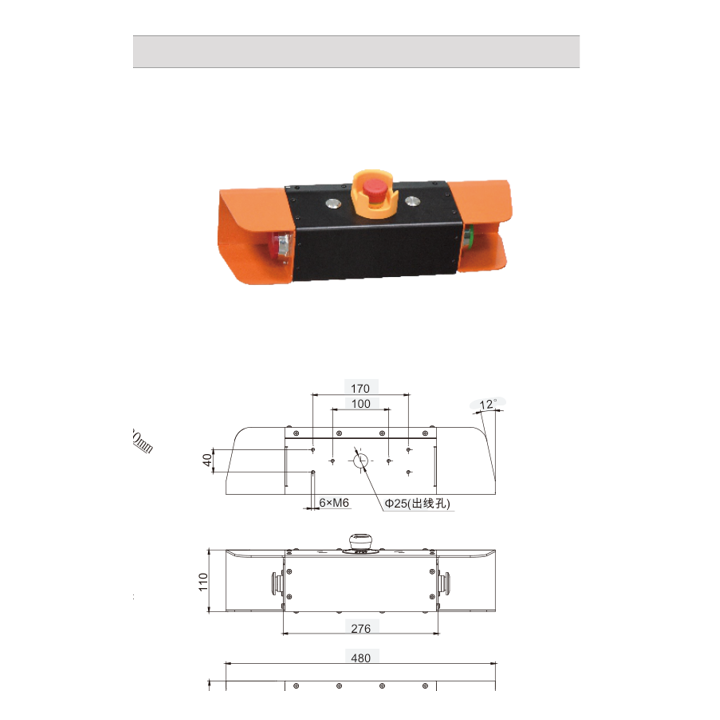

Dimensions & Wiring
Variants: HRF-C / CB with base / O without switch
