Medical Waterproof Pedal
HRF-M5
A rear-step medical foot switch sealed to IPX8 against oil, water and dust, finished in soft medical colours and available in up to four gangs.
General Features
| Material | Flame-retardant reinforced PC; stainless-steel base plate |
| Rated | 8A / 250VAC (resistive) |
| Contact Form | 1a (each gang) |
| Internal Switch | VV15F-01C waterproof micro switch |
| Contact Resistance | ≤50mΩ (initial) |
| Insulation Resistance | ≥100MΩ (500VDC test) |
| Dielectric Strength | 2000VAC, 1 min |
| Mechanical Life | ≥1,000,000 cycles |
| Electrical Life | ≥100,000 cycles |
| Compliance | YY1057-2016 medical foot switch standard |
| Protection Rating | IPX8 |
Structural Features
| ❶Housing | Flame-retardant reinforced PC sealed to IPX8 — oil, water and dust resistant for easy cleaning. |
| ❷Micro Switch | VV15F-01C waterproof micro switch; 24K gold-plated contacts. |
| ❸Colours | Soft medical yellow / blue / red. |
| ❹Cable | RVV 0.5–0.75mm² × 2m (3m/5m optional) |
Installation Mode
Rear-step operation; single to four-gang (M5/M52/M53/M54) with optional connector block (-J) for combining units. Audio, serial and USB interfaces optional.

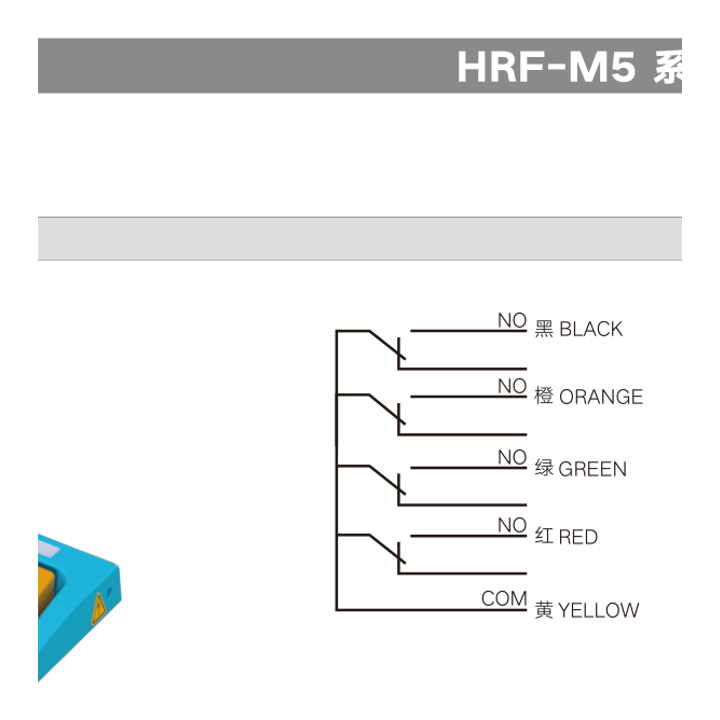

Dimensions & Wiring
Variants: M5 / M52 / M53 / M54 / -J connector block / -A·D·U
