Compact Plastic Pedal
HRF-M7
A refined compact pedal offered in grey or Tiffany blue, with the widest choice of internal switches and interfaces in the plastic range — including a magnetic reed switch for signal use.
General Features
| Material | Pedal & base: PC engineering plastic; mounting plate: SUS304 |
| Rated | 8A / 250VAC (basic); 3A (waterproof / signal) |
| Contact Form | 1a / 1c |
| Internal Switch | V15F-01C (dust-proof) / V05F (waterproof) / magnetic reed (signal) |
| Contact Resistance | ≤25mΩ (initial) |
| Insulation Resistance | ≥100MΩ (500VDC test) |
| Dielectric Strength | Live parts 1000VAC; non-live parts 2500VAC, 1 min |
| Mechanical Life | ≥1,000,000 cycles |
| Electrical Life | ≥100,000 cycles |
| Ambient Temperature | -25℃ ~ +70℃ (no condensation, no icing) |
| Protection Rating | IP54 (waterproof type IPX7) |
Structural Features
| ❶Pedal & Base | PC engineering plastic in grey or Tiffany blue; SUS304 stainless mounting plate. |
| ❷Micro Switch | Choice of V15F-01C dust-proof, V05F waterproof, or magnetic reed switch for signal applications; 24K gold-plated. |
| ❸Contacts | Silver-alloy contacts, 24K gold-plated |
| ❹Cable | RVV 0.5–0.75mm² × 2m (3m/5m optional) |
Installation Mode
Bolt-mounted; the richest interface choice in the plastic range — audio (-A), serial (-D), USB (-U), aviation plug (-P) and reed-signal (-M).

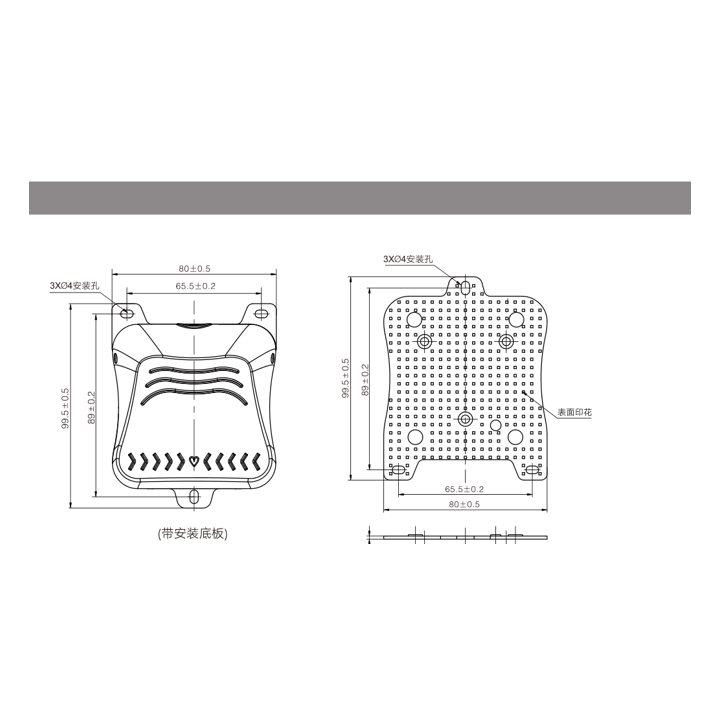

Dimensions & Wiring
Variants: M7 / -A·D·U / -H waterproof / -P aviation / -M reed / -F waterproof
